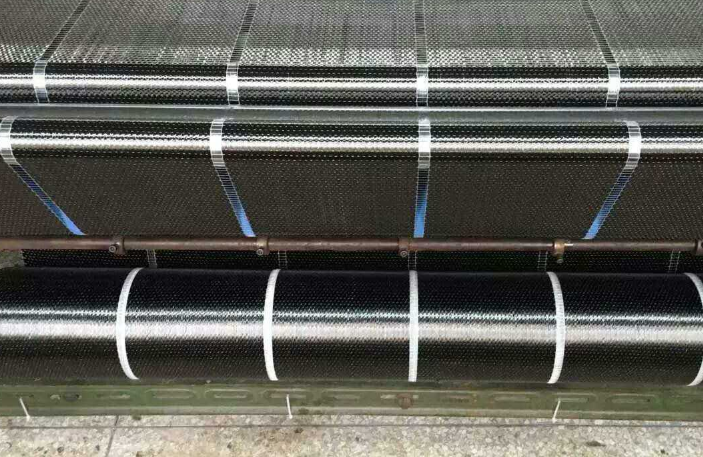

Pipe strengthening Carbon fiber CFRP fabric with CE approved
Weight: 300gsm
Density: 1.8g/cm³
Packing: 100 meters/roll
Width: 100mm, 200mm, 300mm, 500mm or to be customized.
Storage Condition:Store dry at 40°-95° F(4° -35°)
Shelf Life: 50 years
Color:Black
Carbon Fiber Type: 0° (unidirectional)
Pipe strengthening Carbon fiber CFRP fabric with CE approved
Carbon Fiber-reinforced polymer (CFRP fabric) systems are simply defined as highstrength and lightweight reinforcements created by combining carbon (CFRP fabric ) with a polymer material (epoxy resin). The performance characteristics of CFRP fabric strengthening system have become increasingly popular in construction and retrofit applications, specifically in aging, damaged, deteriorating or overloaded concrete structures.
Carbon Fiber Reinforced Polymers for Structural Strengthening. These fabrics are applied onto the surface of existing structural members in buildings, bridges and other structures. The result is an externally bonded CFRP (carbon fiber reinforced polymer) reinforcement system engineered to increase the structural performance
The most common CFRP fabric systems for concrete strengthening applications are carbon fiber based (CFRP fabric). Carbon has superior mechanical properties and higher tensile strength, stiffness, and durability compared with glass fiber based systems. The use of prefabricated CFRP bars and plates is typically limited to straight or slightly curved surfaces; for example, the top side or underside of slabs and beams. Prefabricated CFRP elements are typically stiff and cannot be bent on site to wrap around columns or beams.
| Testing project | Standard |
| High Strength Grade 1 |
| Tensile strength | ≥3400 MPa |
| Tensile modulus of elasticity | ≥2.3×105 MPa |
| Elongation | ≥1.6 % |
| Bending Strength | ≥700 MPa |
| Layer cutting strength | ≥45 MPa |
| Cohesive pulling strength with base materials | To concrete and brick materials, ≥2.5 MPa |
| Thickness | 0.167mm |
Structural Elements
• Columns strengthening
• Beams strengthening
• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening
Application Range
Load increases
Seismic reinforcement
Improve structural state
Damage of structural parts
Change the structural function
Remit mistakes in design and construction
Flexural strengthening,
Shear strengthening,
Column confinement and ductility improvement.
Our main product series:
-- Carbon fiber reinforcement system,v
XQ-XW carbon fiber epoxy adhesive
XQ-XB concrete surface leveling epoxy adhesive
XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm
Carbon fiber CFRP fabric
-- Chemical Anchor series
Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)
-- Steel bonding reinforcement system
XQ-JGN structural epoxy adhesive
XQ-GZ Grouting epoxy adhesive
XQ-FB edge sealing adhesive
-- Concrete repair system
XQ-GF crack grouting adhesive
XQ-FF crack sealing adhesive
